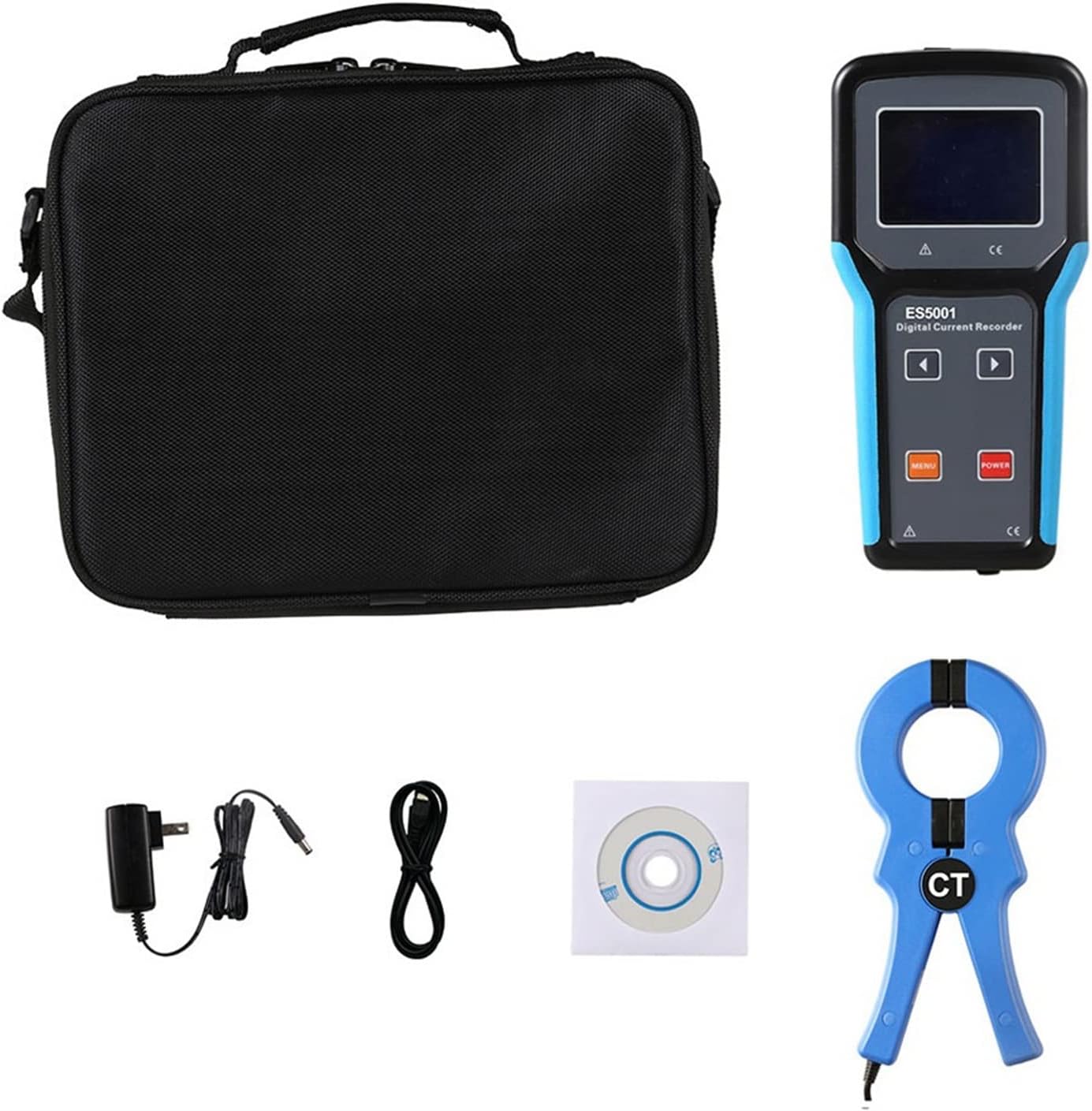

Insulation Resistance Tester, Clamp-on Ammeter Digital Clamp-on Online Leakage Current Recorder Digital Clamp-on Leakage Current Meter ES5001

Specification:Range：0.0mA-1000AJaw size：Φ50mmResolution：0.1mAAccuracy：±0.5%FSFunction：AC current measurement record, online monitoring record, line maintenance, fault findingPower：DC6V Nickel-metal hydride rechargeable battery 1.2V×5Test method：Clamp CT, mean current detectionDisplay mode：LCD：128dots×64dotsFrequency：50/60HzHost size：W/H/T: 100mm×204mm×35mmCurrent clamp size：W/H/T: 101mm×214mm×27mmWeight：Host：409g（including battery） charger：83.5gCurrent clamp：260gLCD size：Display area：62mm×44mmSampling rate：2 times/secStorage medium：TF cardData storage：9999 groups（Losing power or replacing the battery will not lose data）time settings：Set the recording interval within 1 to 60 minutes, 0 minutes means not automatically storedRecord time：Continuous operation for 2 days in power saving modeReal-time clock：HaveClock setting function：HaveLead length：Standard 2 metersWorking temperature and humidity：-10℃～40℃；below 80%rhStorage temperature and humidity：-10℃～60℃；below 70%rhInsulation resistance：20MΩ or more,1000VSuitable for Safety Regulations：IEC1010-1、IEC1010-2-032、 pollution grade 2、CAT Ⅲ(600V) IEC61326(EMC standard)

• ★High-precision technology, high measurement accuracy, strong reliability, and bandwidth response frequency
• ★It is especially suitable for current testing in places with dense cables, core current test of transformers connected to the wall by subway, testing of thick wires and cables, relay protection, power electronic conversion equipment, arc welding and other industrial environments where the signal is severely distorted.
• ★Its small size, light weight, exquisite appearance, soft and flexible, suitable for narrow environments and places with dense cables
• ★High-quality materials, stronger anti-interference performance
• ★Slender jaws, more adaptable
